Description

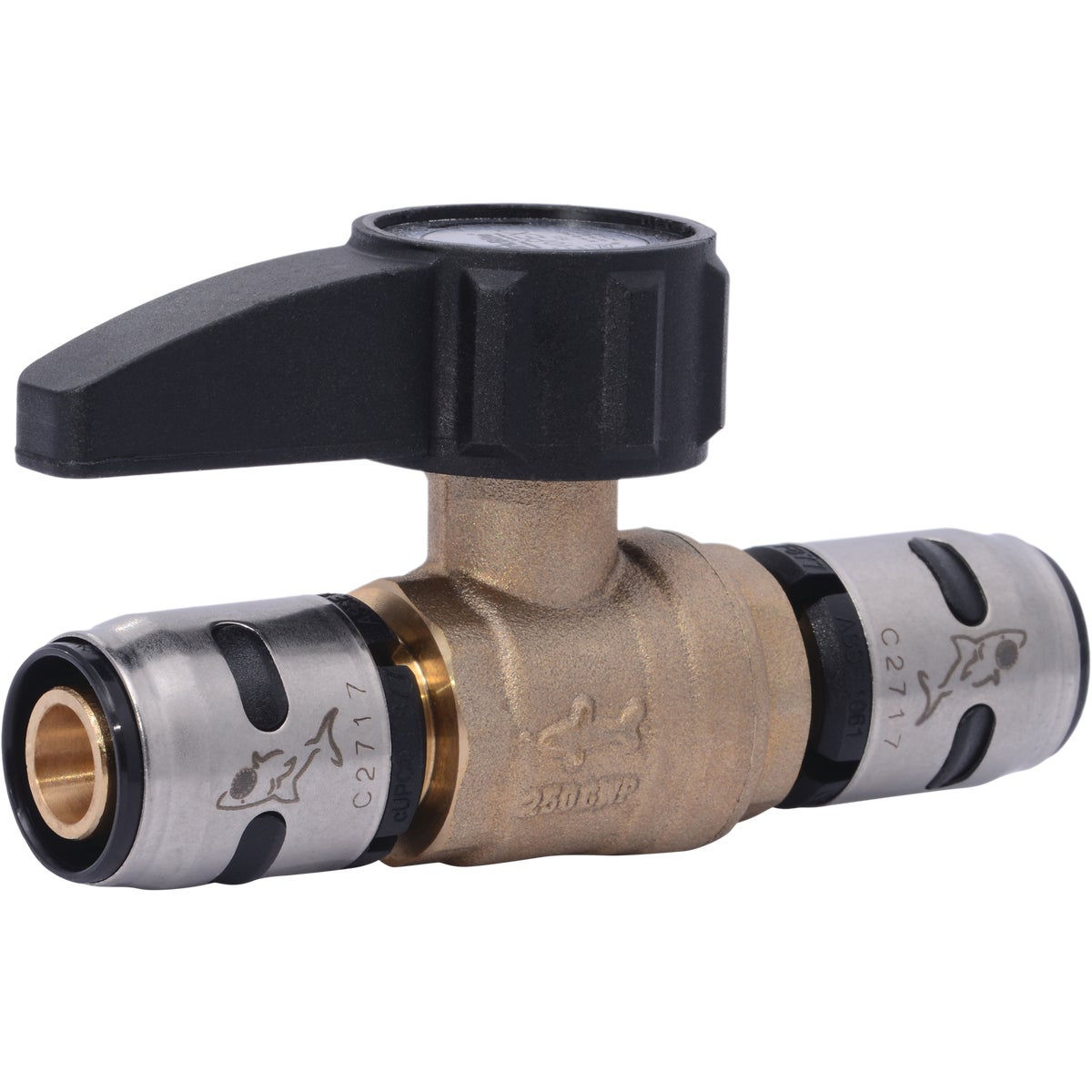

This push-to-connect valve is designed to make PEX-to-PEX connections in potable water and radiant heating (including underground or behind-the-wall) applications with no access panels required. No soldering, clamps, unions or glue required. Insert PEX pipe into the fitting deep enough to be sealed by o-ring. Once inserted, stainless steel teeth bite down and grip the pipe. Green indicator ring will display in the slots around the fitting to visually display that permanent inner-diameter connection is secure.
| Material | Plastic |
| Type | Ball Push Valve |
| Pressure Rating | 80 psi at 200 F, 160 psi at 73.4 F |
| Inlet Diameter | 1/2 In. |
| Outlet Diameter | 1/2 In. |
| Inlet Connection Type | Push |
| Outlet Connection Type | Push |
| Pressure Rating (psi) | 80 / 160 |
| Maximum Working Temperature (F) | 200 / 73.4 |
| Brand | SHARKBITE |
| UPC | 00697285044203 |
| Product type | Plastic Valve |
