Description

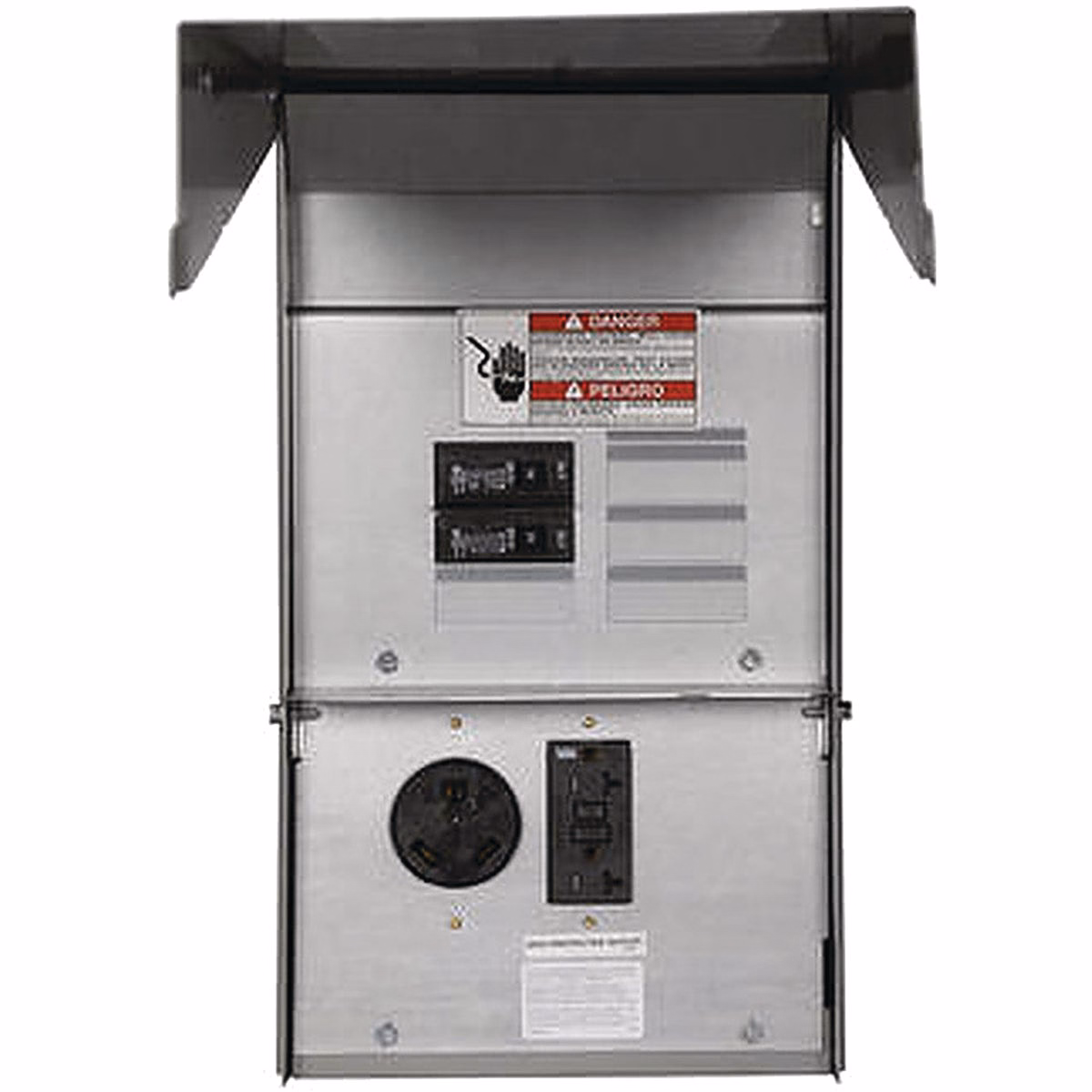

Power outlet panel with 30-amp NEMA TT-30R receptacle and 20 amp GFCI (ground fault circuit interrupter) weather resistant and tamper resistant NEMA 5-20R2GF. Designed for outdoor use to meet temporary power requirements for homes, construction sites, marinas, and recreational vehicles. Safe and reliable electricity access. Completely assembled, pre-wired with copper wire, and factory installed insulated neutral bar. Raintight enclosure is constructed of galvanized steel with a baked-on polyester coating which resists chalking caused by the sun’s ultra violet rays. Tested in accordance with UL standard 231.
| Amperage | 30/20 |
| Voltage | 120/240 |
| Series | CH |
| Number Of Spaces | 2 |
| Enclosure Type | NEMA 3R |
| Phase | Single Phase |
| Certification | UL Listed |
| Width (In.) | 7.13 |
| Height (In.) | 12.38 |
| Depth (In.) | 4.75 |
| Brand | Eaton |
| UPC | 00786685406350 |
| Product type | Raintight Enclosure |
Reviews
There are no reviews yet.
